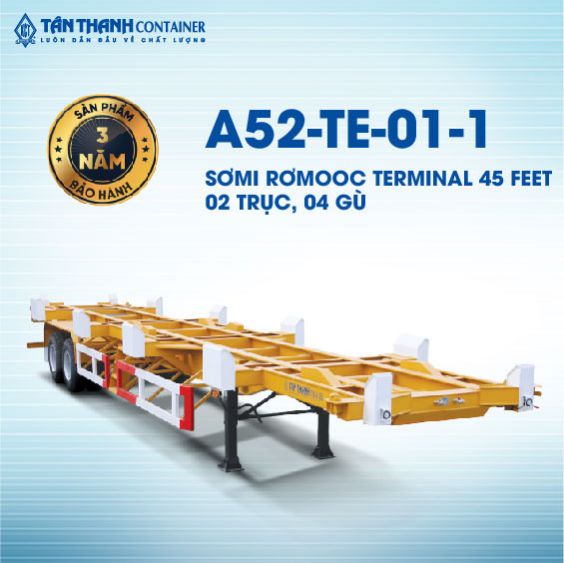

2 Axles 45 Feet Terminal Trailer (A52-TE-01-1)

2 Axles 45 Feet Terminal Trailer (A52-TE-01-1)

440.000.000đ
This is only a reference price. For details, please get in touch with Tan Thanh Container!
General information
SKU: 510000087
Overall length - Overall width - Overall height: 14,180 - 2,800 - 1,700 mm
G.V.W.R: 36.100 kg
warranty: 3 years
Quantity:
-
+
Details Products

.

test
Advantages
    1. Excellent design: terminal semi trailer A52-TE-01/-1 has 2 main cast beams made of SM490YA /Q345B steel for sturdy structure, providing very high load capacity.
    2. FUWA genuine suspension and stand having the 2-speed manual control, helps the vehicle run stably, grip the road and increase its durability.
    3. Braking system equipped with 2 Sealco relay valves: make the vehicle brake faster, much more durable than Wabco's - from China as sold on the market currently.  Sealco is rated as the leading prestige enterprise on the Vietnamese market and the world currently.
    4. Genuine Casumina tires: Facilitate high playload capacity, help the vehicle less wear out.
    5. North - Central - South warranty system: The product is warranted for 3 years on the North - Central - South branch system, convenient for moving the vehicle to the warranty station..
    6. Super durable electrostatic powder coating: The chassis is applied with electrostatic powder coating technology through the process of Shot blasting, primer, coating and color fastness to increase the durability of the vehicle..
    7. A52-TE-01/-1: has 2 Axles, 4 twistlocks helping to be flexible in transportation in port.
Application

Terminal semi trailer A52-TE-01/-1 is specially designed to transport 45 feet containers with very large playload.

test
Specifications
45 FEET 2 AXLES TERMINAL TRAILER
Model KCT A52-TE-01-1
Manufacturer Tan Thanh Trading Mechanic Corp
No. GCNCL 007/VAQ07-02/11-00
DIMENSIONS
Overall length 14,180 mm
Overall width 2,800 mm
Overall height 1,700 mm
King pin position 920 mm
Wheelbase settings 9,100 + 1310 mm
STRUCTURAL WEIGHT RATTING
Tare weight 7,200 kg
Payload 28,900 kg
G.V.W.R 36,100 kg
STRUCTURE
Main beam High strength steel I 540 x150x16x8 mm
King Pin 2”, Fuwa KPEW210
Landing Leg Manual operating 2 speed FUWA FW280002T
Axle 2 axles x 16 tons, FUWA F2461BII
Electrical System 24V, 7-pin plug.
Brake Chamber T30/30, Fuwa
Brake system Dual line brake system
Spring leaves 7 spring leaves – FUWA FW880202A, high strength steel
Tire Tire: air, size 11.00-20, 20pr
Wheel 8.00V-20, 10 holes
Painting Shot blasting, primer coating, top coat
WARRANTY 3 years warranty
