Trang chủ Semi Trailers 4 Axles 70 Feet Drop Deck Semi Trailers P704-LR-01

4 Axles 70 Feet Drop Deck Semi Trailers P704-LR-01

Contact
This is only a reference price. For details, please get in touch with Tan Thanh Container!
General information
SKU:
Length x width x height: 20,665 - 2,800 - 1,670 mm
Payload design: 59,545 kg
Warranty: 3 years
Request a quotation
sub background

Overview

4 Axles 70 feet P704-LR-01 Tan Thanh is manufactured by high-tech production lines, with a load capacity of more than 59 tons, specialized in transporting oversized machinery and equipment, and enormous weight.

details

Key Advantages

advantages
    • Superior design: P704-LR-01 drop deck semi-trailer owns a robust structural steel Q345B main girder, providing high load-carrying capacity.
    • Genuine FUWA kickstand:  2-speed manual control helps the drop deck semi trailer run stably, grip the road of the the drop deck semi-trailer over time.
    • FUWA brand shaft: Helps increase load capacity, especially P704-LR-01, with the ability to withdraw the last 2 axes, saving business costs.
    • The brake system is equipped with Sealco toad, which makes the car brake faster and more durable.
    • Genuine tires: help the car have a high load and less wear.
    • North - Central - South warranty system:   The product is warranted for 3 years on the North - Central - South branch system, which is convenient for moving the vehicle to the warranty station.
    • Durable paint layer: The chassis is applied through spraying, priming, coating, and steaming to increase the life of the painted surface.

Specifications

Type

Super-long, super-heavy cargo semi trailer, 70 feet, 04 axles

(Brand)

KCT

Model

P704-LR-01

Manufactured by

Tan Thanh Trading Mechanic Corporation

DIMENTION

Overall length

    20,665  mm

Overall width

      2,800  mm

Overall height

      1,670  mm

Wheel base

10,100 + 1,800 + 1,800 + 1,800 mm

STRUCTURAL WEIGHT RATING

Tare weight

30,650 kg

Payload

/

Payload design



59,545 kg



STRUCTURE

SPECIFICATIONS

ORIGIN

Main beam

Fabricated, Q345B steel

VIET NAM

Kingpin

3.5 inch, Bolted-in, Fuwa brand

CHINA

Landing gear

Fuwa brand, 19’’, manual operating  two speed, capacity 28 tons, steel material

CHINA

Axles

Fuwa brand, four axles, capacity 13 tons, steel material

CHINA

Suspension system

Air suspension, Fuwa brand, 13 tons

CHINA

Steering system source:

Diesel engine

CHINA

Hydraulic pump

Hydraulic gear pump

CHINA

Battery

20V

VIET NAM

Steering system

Control driving by remote

CHINA

Brake system

2 lines pneumatic brake system, T30/30 brake chamber; Emergency relay valve, USA

CHINA, USA

Tire

285/70R19.5, LINGLONG brand

THAILAND

Rim

8.25x19.5, 10 holes ISO, Hub piloted type

CHINA

Side guard, rear bumper

SS400 Steel

VIET NAM

Painting

Powder coating

VIET NAM

ELECTRICAL SYSTEM

Light system

Led 10-30 Volt, Suitable for all voltage of tractors), Philips brand

CHINA

Voltage

10-30 Volt



Products related
Bảo hành 3 năm
Axle 3 Axle
Application trucking reefer containers for long distance
Goose-neck Semi Trailer (Transporting Containers) K83-CC-01/-1
Bảo hành 3 năm
Axle 3 Axle
Application trucking reefer containers for long distance
3 Axles 48 Feet Goose-neck Semi Trailer (Transporting Containers) K83-CC-01-1
Bảo hành 3 năm
Axle 2 Axle

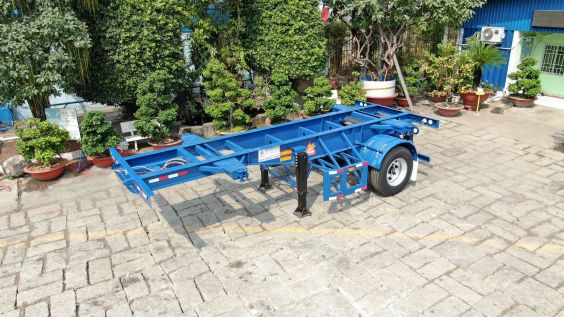

1 Axle 20 Feet Semi Trailer Transport Radar
