Skeleton Semi Trailers

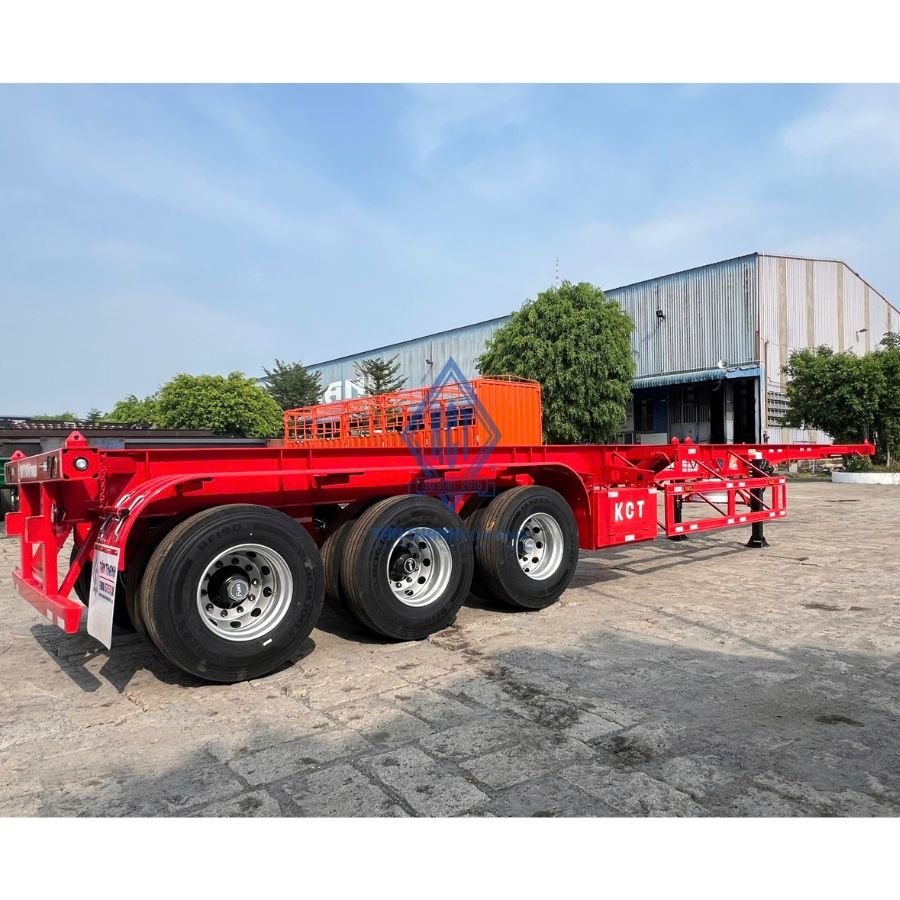

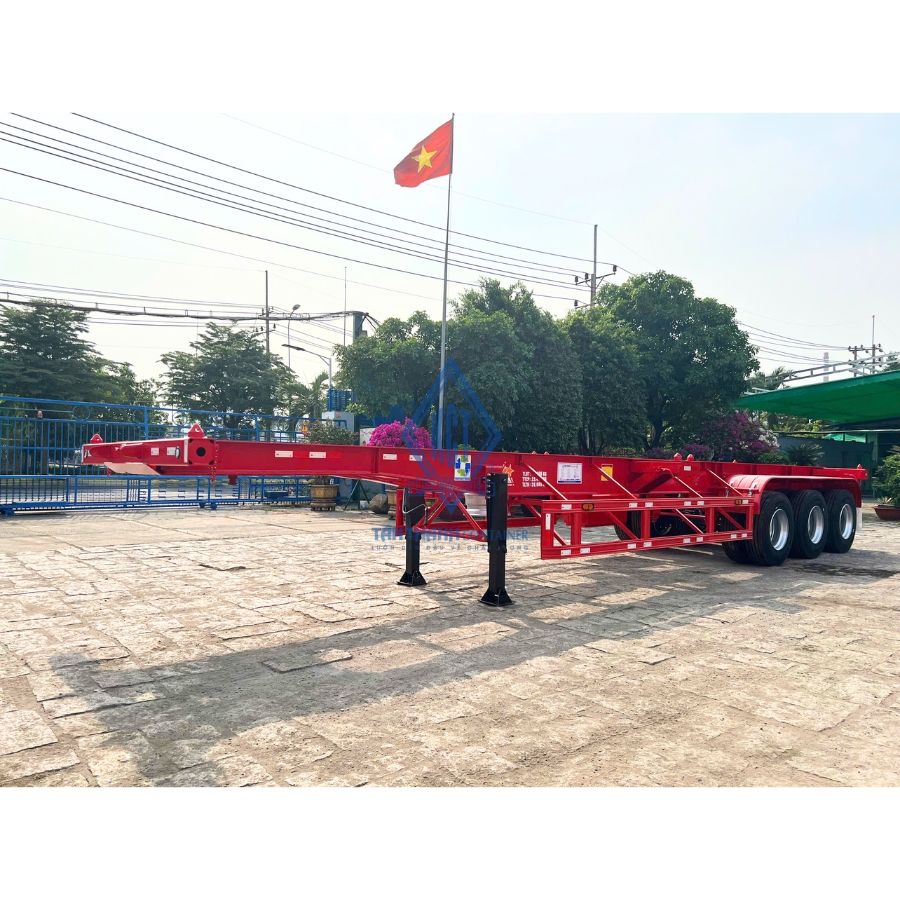

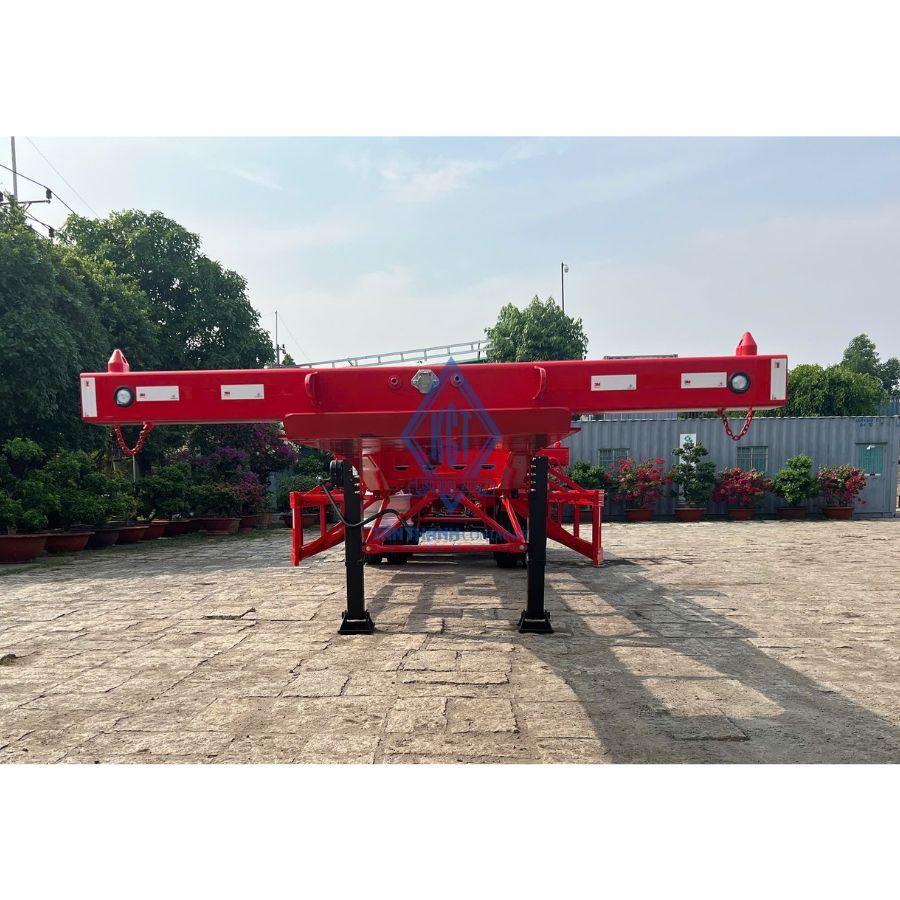

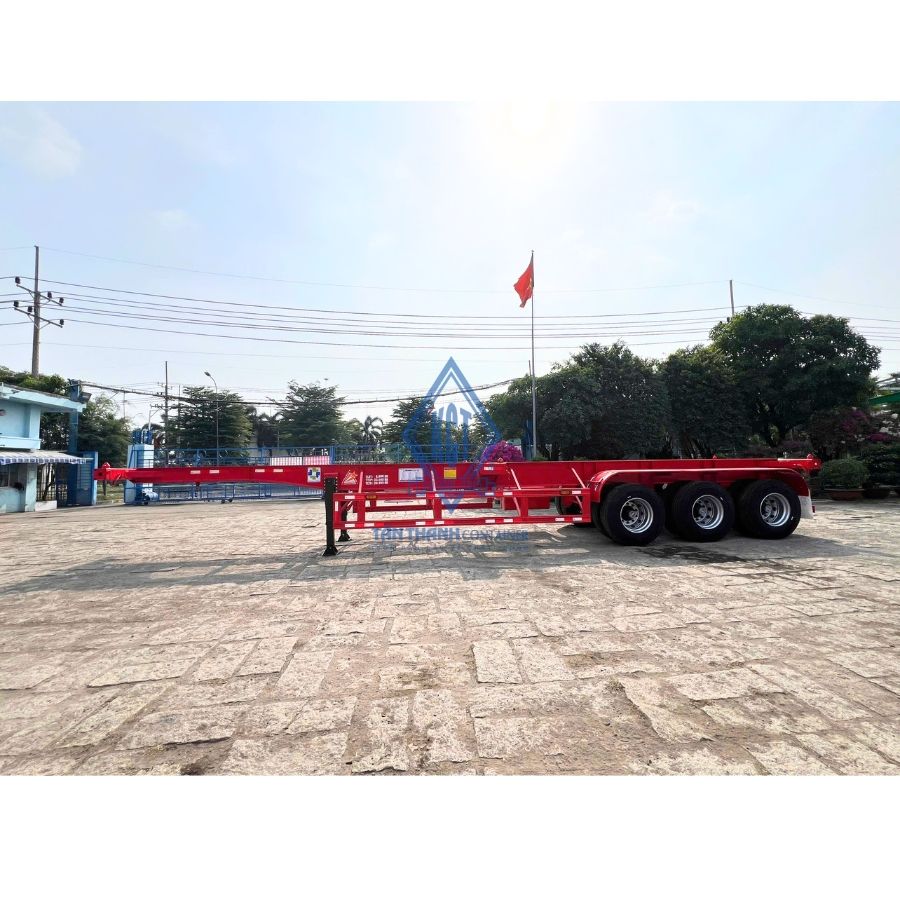

03 Axles 40 Feet Container Semi Trailer/Container Chassis L43-XA-01-4

305.000.000đ

This is only a reference price. For details, please get in touch with Tan Thanh Container!

General information

Length - Width - Height:	12.380 - 2.500 - 1.542 mm
Total load:	39.085 kg
Warranty:	3 years

Quantity:

Details Advantages Application Specifications

Details Products

CONTAINER SEMI TRAILER/CONTAINER CHASSIS (transporting containers) L43-XA-01-4 Tan Thanh Container produced by high-tech production lines, with playload up to over 33 tons, xe has 8 twistlocks specially used for dry containers 40 feet, 20 feet

Advantages

Excellent design: container semi trailer / container chassis L43-XA-01-4 has 2 main cast I beams made of Japanese SM490YA steel and designed to evenly distribute the load on the Axles clusters, helping to create certainty, durability and bring load capacity up to 33 tons..
FUWA genuine suspension and stand: helps the vehicle run stably, grip the road and increase its durability.
Braking system being equipped with Sealco relay valves: make the vehicle brake faster, with higher durability. Sealco is ranked as the leading prestigious brand in the current Vietnamese and international market..
Genuine Casumina tires: Tan Thanh uses Casumina tires helps the vehicle with high load capacity, less wear out.
North - Central - South warranty system: The product is warranted for 3 years on the North - Central - South branch system, convenient for moving the vehicle to the warranty station..
Paint: Use the best current process of shot blasting, primer, coating and color fastness which helps to create a durable coating under all weather conditions.

Application

CONTAINER SEMI TRAILER/CONTAINER CHASSIS L43-XA-01-4 has 8 twistlocks flexibly designed to transport 20, 40 feet dry containers, with quite high load, flexible size when moving.

Specifications

CONTAINER SEMI TRAILER/CONTAINER CHASSIS 40 FEET, 03 Axles, 08 TWISTLOCKS

Trademark	KCT
Manufacturer	Tan Thanh Trading and Mechanic Corporation
Serial number	L43-XA-01-4

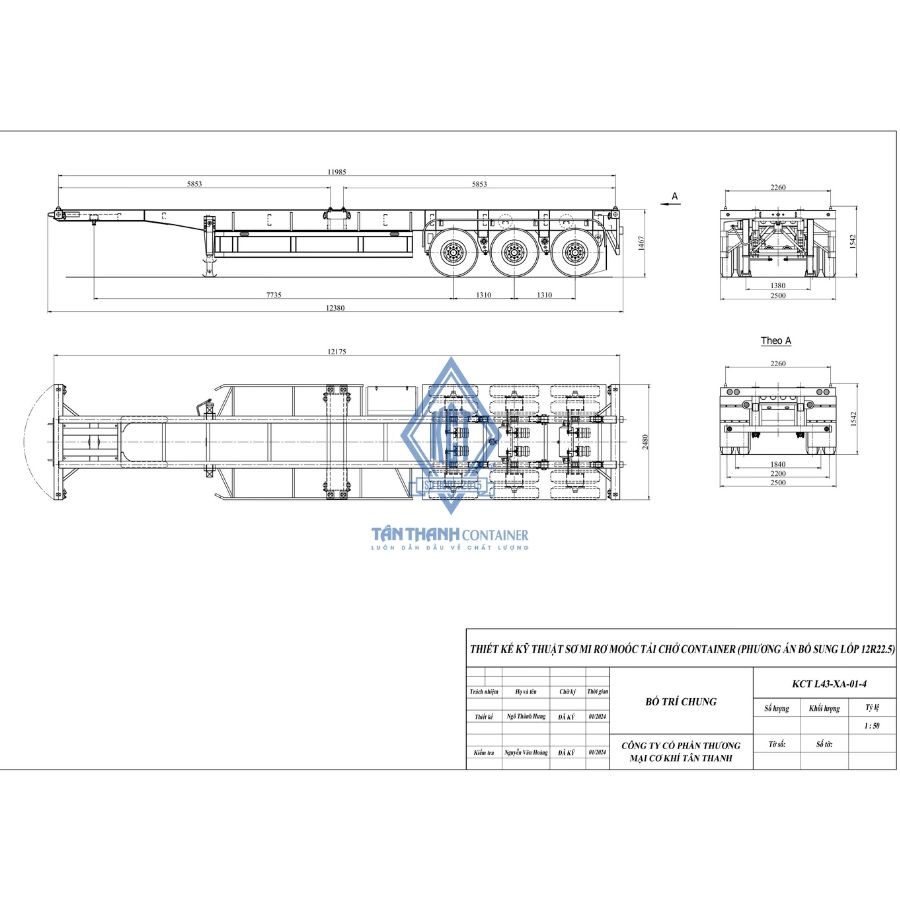

Dimensions
Length	12.380 mm
Width	2.500 mm
Height	1.542 mm
Load distribution
Tare weight	5.600 kg
Playload	33.485 kg
Total load	39.085 kg
Structure
Main Beam	cast I Beam, SM490YA Steel
Fifth Wheel Weld	JOST 2″, Bolt on type
Stand	FUWA, 2-speed manual
Axles	FUWA, 13 tons
Suspension systems	FUWA
Toolbox	SS400 Steel
Side guard, rear bumper	SS400 Steel
Fleetrite Brake Chamber	2 layers
Braking system	Braking system 2 lines splitting air, Sealco relay valves , USA
Shell	12R22.5 CASUMINA
Tray	9.00-22.5, 10 holes.
Pain	Shot blasting, primer, coating.

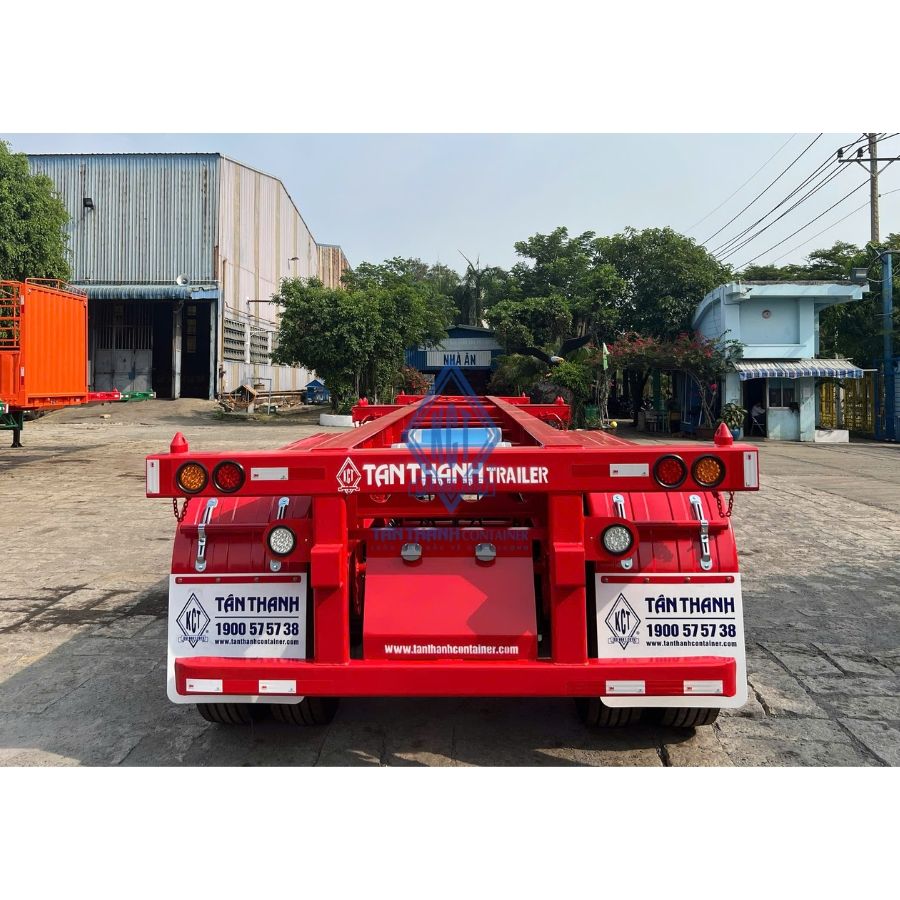

Lighting system	10–30V LED lights, Philips
Voltage	10 - 30 Volt
Warranty	3 years
